HapoHUSB Temperature Data Logger

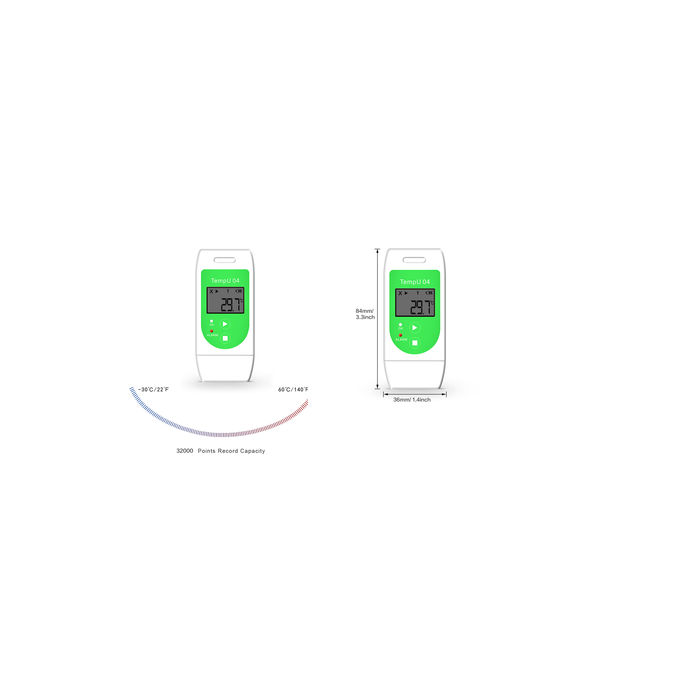

User-friendly USB temperature logger with a memory capacity of 32,000 readings. The logger automatically generates a PDF report when inserted into the USB port. This multi-purpose logger operates from -30°C to +60°C. A calibration report is included as standard.

Downloads:

• Click here for the datasheet of this logger
• Click here for the Dutch manual
• Click here for the software of this logger

Features:

• This HapoH logger is configured by us and is therefore ready for use.
• Includes factory calibration report
• Default setting: +2°C and +8°C
• Temperature logger

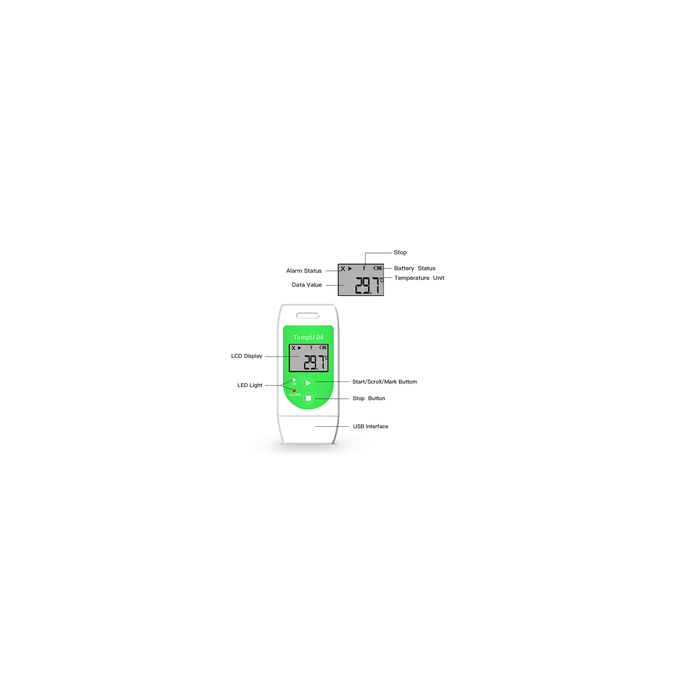

• Clear LCD screen
• Automatic PDF report
• Free software available (included) for settings.
• Optional with measurement - calibration report (additional charge)

How to use:

1. Press and hold the logger's "play" button for at least 5 seconds until the green OK light comes on (located next to the play button).
2. The logger can now be placed in the refrigerator
3. The logger starts recording
4. If you wish to read the logger, remove the logger from the refrigerator and immediately press the "stop" button for at least 10 seconds until the red alarm light comes on.
5. The logger can now be inserted into the USB port of the computer.
6. The logger can be found in Explorer under the name TZONE
7. The logger contains a PDF file with all the data
8. You can save or print this PDF and remove the logger from the computer.
9. You can then begin again with the first step above. (The PDF file will be removed from the USB data logger when you press the play button.)

Calibration

Optionally, we can test the data logger at two temperatures and include the test results in a calibration report. All our calibration reports are traceable to international standards.
