Meling Medicine Refrigerator YC-55 with standard door
Meling Medicine Refrigerator YC-55
The Meling YC-55 pharmacy refrigerator is equipped with a precise temperature control system using two highly sensitive sensors and meets the requirements of DIN 13277. If the primary sensor fails, the secondary sensor is automatically activated to maintain a constant temperature inside the refrigerator. To increase the safety of refrigerated goods, the pharmacy refrigerator has several alarm functions. An audible signal sounds when the temperature exceeds or falls below a defined range, in the event of a power outage, or if the door is not properly closed.
Frost formation is prevented by full air cooling. The internal cooling fan runs when the door is closed and switches off automatically when it is open. In addition, the refrigerator comes standard with a built-in USB data logger, an external alarm contact, and an RS-485 interface for integration into a monitoring system. The temperature and humidity can be read on the backlit digital display. The door is available in a standard or glass version and can be locked if necessary to prevent unauthorized access. The housing is made of high-quality steel, while the interior is made of robust aluminum. Both surfaces are easy to clean.
- Medicine refrigerator YC-55 from Meling
- Meets the requirements of DIN standard 13277
- Very compact device for temperatures between +2 and +8 °C
- Various alarm functions
- Acoustic alarm in case of temperature deviations, power failure or a door that is not properly closed
- With USB data logger
- Automatic defrost function available
- Optionally available with standard door or glass door
- Lockable door protects contents from unauthorized access
- Interchangeable door hinges
- Exceptionally quiet operation of only 40.2 dBA
- Easy-to-clean steel housing
- Interior made of high-quality and robust aluminum
- Article number: YC-55
- DIN 13277:

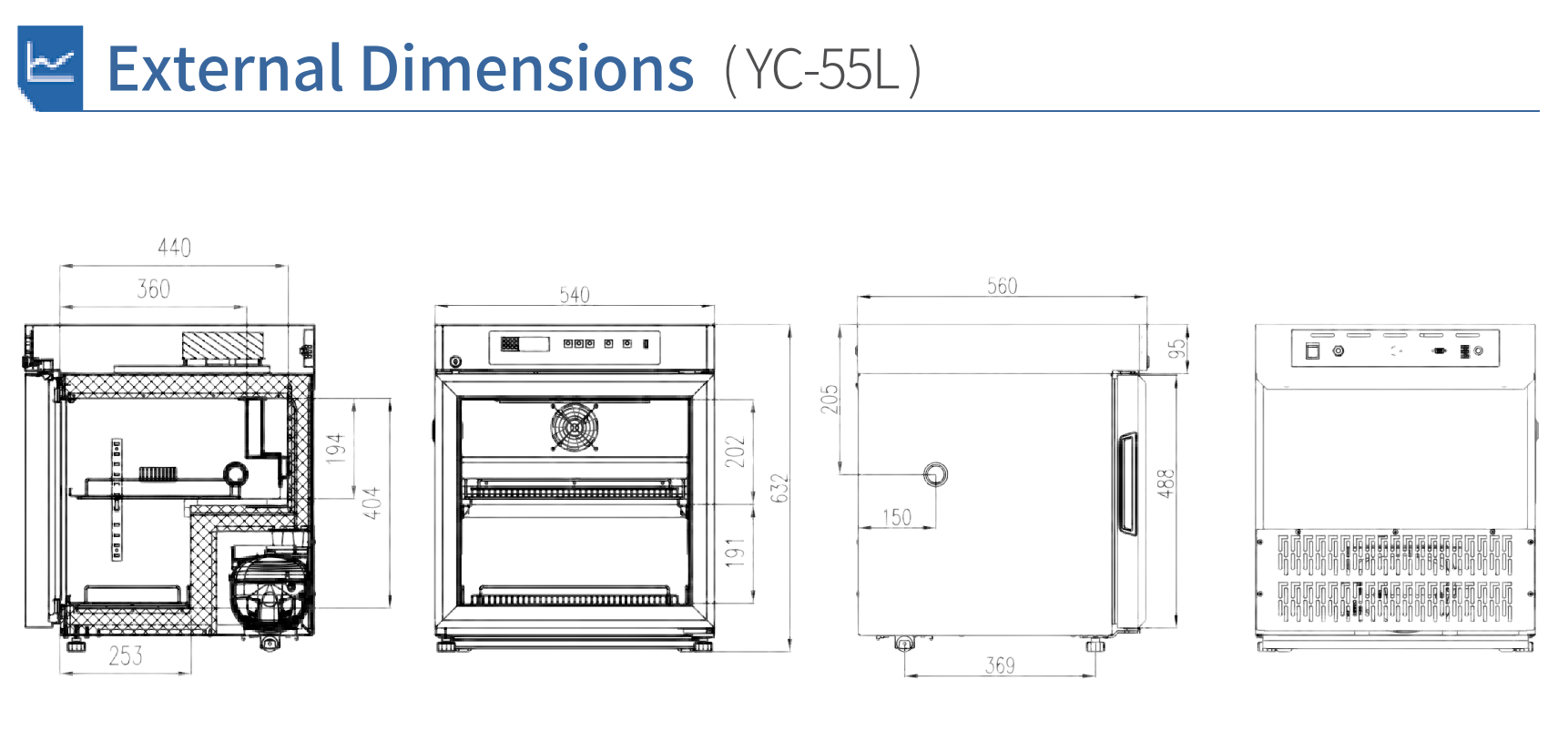

- Exterior dimensions (H/W/D): 632 x 540 x 560mm
- Gross capacity, total: 55 liter
- Under counter:
- Door/Cover material: white
- Energy consumption in 24h: 1.82 kWh / 24h
- Build in between:
- Temperaturerange: 2~8℃
- Doorlock:
- Display: Digital
- Self-closing door:
- Temperature Recording:
- Temperature alarm:
- Door Alarm:
- Alarm limits adjustable:
- Save MIN / MAX temperatures:
- Registration alarms:
- Power failure alarm:
- Temperature recording during power failure:
- potential-free contact:
- Interface: RS 485 / USB
- Door hinges: Right, reversible
- Pass-through for sensor:
- Cooling: Dynamic
- automatic defrosting:
- noise: dB
- Refrigerant: R600a
- Length connecting cable: 240cm
- Spark free:
