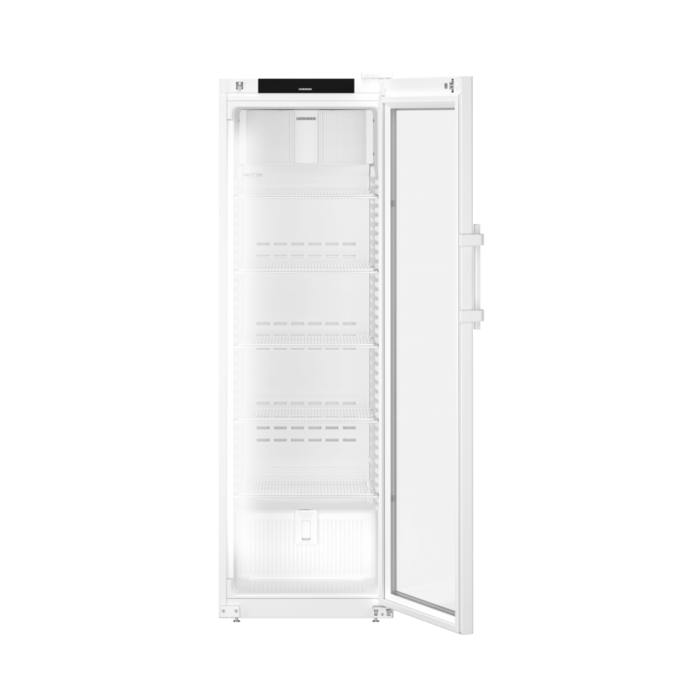

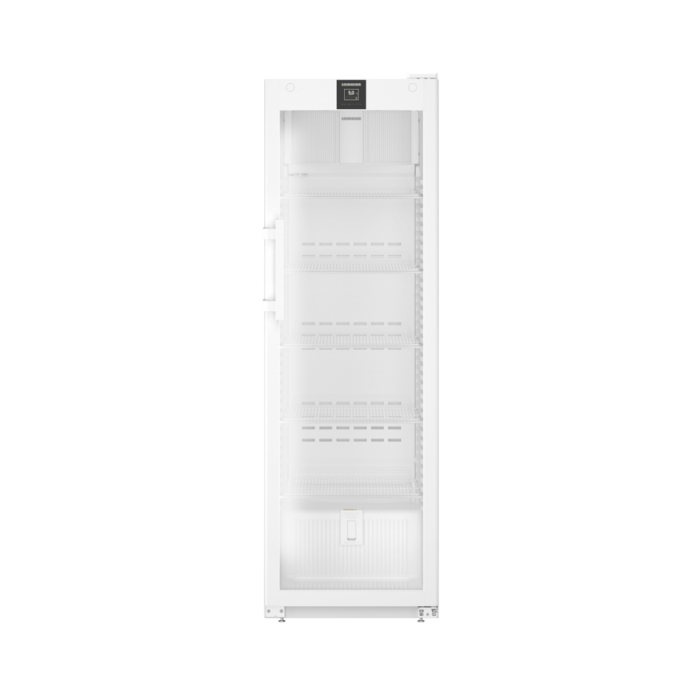

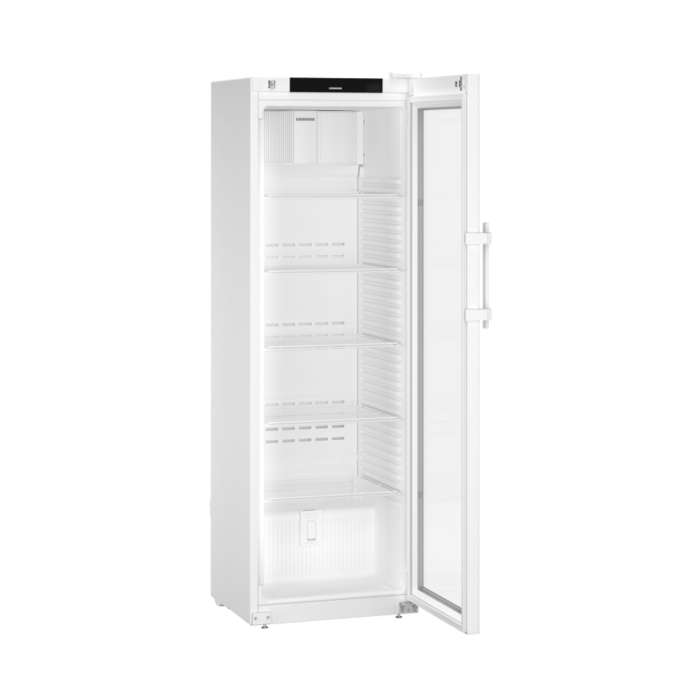

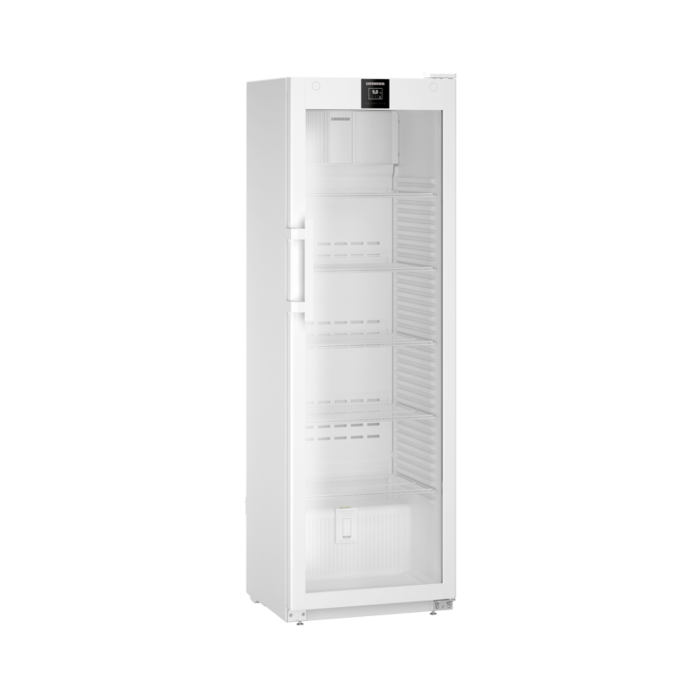

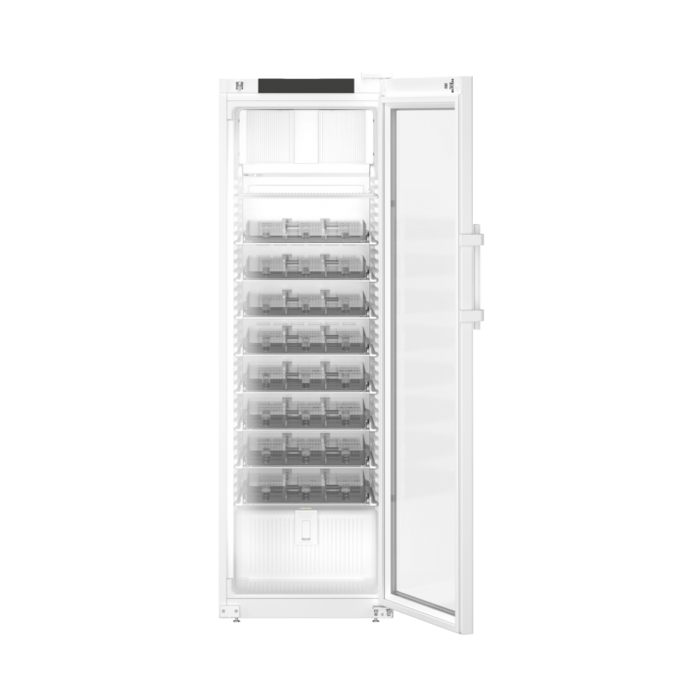

LiebherrHMFvh 4011 Perfection with glass door
- Click here for all specifications of the Liebherr HMFvh 4011
- Click here for the user manual of the Liebherr HMFvh 4011

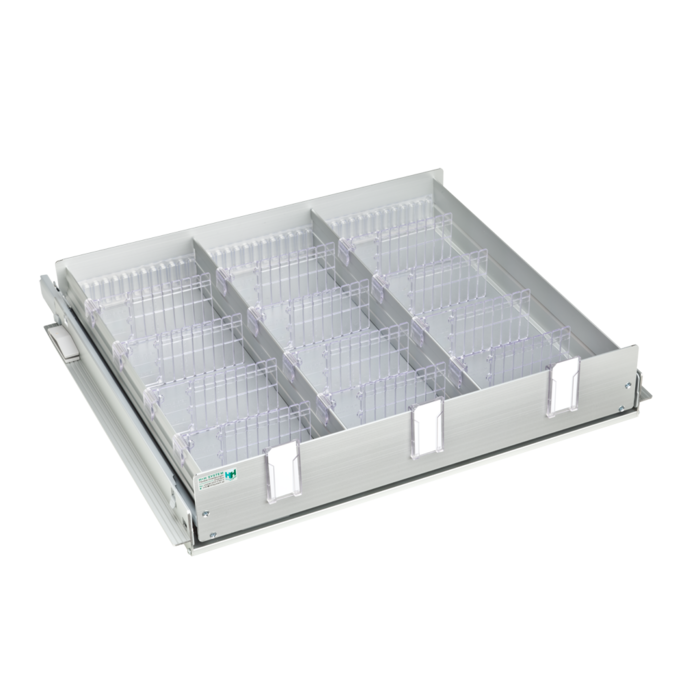

This cooler with aluminum pull-out drawers for clearly storing medicines (DIN 13277) has a 2.2" color display (12 languages including Dutch) that can also be operated with gloves. In the event of a temperature alarm, SmartLock automatically locks the cooler door, so that medicines with an interrupted cold chain are not accidentally released. Authorized persons can unlock the lock again. To ensure full traceability, the integrated data logger records temperature profile, alarm history and service information for 5 years.
This medical refrigerator is suitable for professionally storing products at a
temperature of 5 °C. Typical products that can be stored are refrigerated medicines, pharmaceuticals or other pharmaceutical products stored in a temperature range of 2°C to 8°C
must be stored. The device complies with the regulations of DIN 13277 for refrigerated and frozen storage equipment for laboratory and medical applications.
When storing valuable or temperature-sensitive substances or products, the use of an independent, permanently monitoring alarm system is required. This alarm system must be designed in such a way that any alarm condition is immediately recorded by a responsible personwho can then take appropriate action
The temperature in the interior of the appliance isset to the required +5 °C and cannot be changed.
| Cooling temperature setting range | +5°C |
| Maximum fluctuation cooling section | 2.4°C |
| Gradient cooling section | 3°C |
| Warm-up time from +5 °C to +10 °C (empty, +25 °C TU) | 31 |
| Warm-up time from +25 °C to +5 °C (empty, +25 °C TU) | 31 |
Featured:
- Maximum positive temperature deviation from setpoint 1.9
- Maximum negative temperature deviation from the setpoint -1.3
- Recovery time after 1 min door opening (empty, +25 °C TU, according to EN 60068-3) 12
- Never defrost again thanks to the automatic defrosting system
- Faster cooling of medicines through thedynamic cooling system
- Warns immediately in case of power failure,Alarm in case of power failure, for 12 hours
- The self-closing door does not remain open unnoticed.
- With left or right opening door. (changeable)
- Audible warning in case of malfunction through theoptical and acoustic temperature alarm
- Maximum fluctuation cooling section 2.4 °C
- Registration of alarm messages

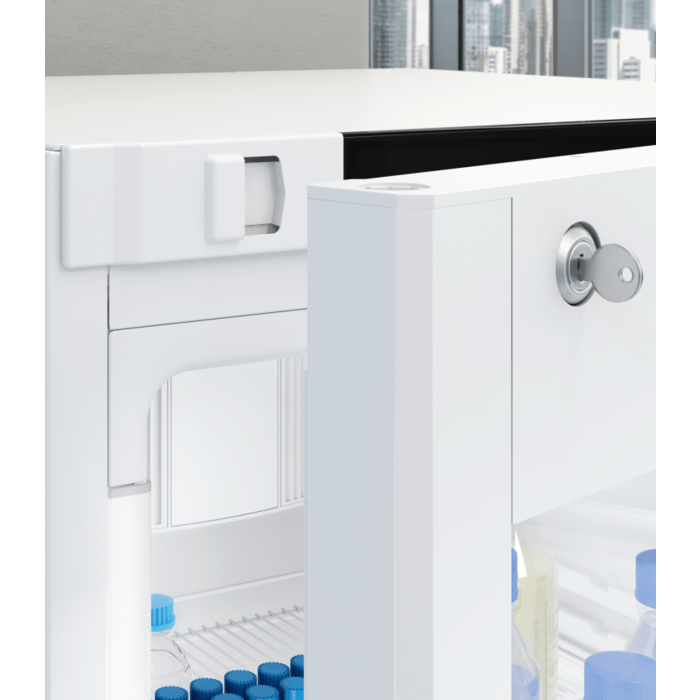

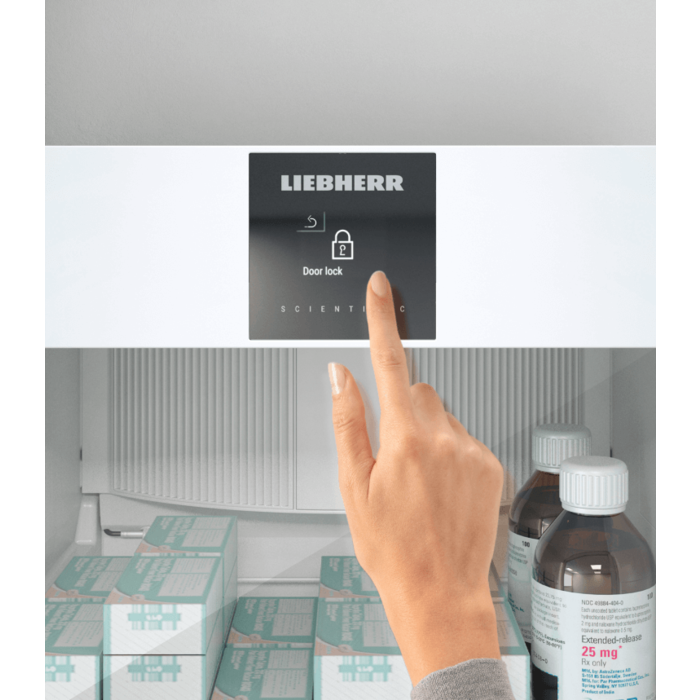

- Electronic lock with remote control
- Potential-free contact
- Control panel Touch & Swipe
- Temperature is easy to read via thedigital temperature display
- Brand: Liebherr
- Article number: HMFvh 4011M8
- DIN 13277:
- Exterior dimensions (H/W/D): 188,4 x 59,7 x 65,4mm
- Gross capacity, total: 394 liter
- Under counter:
- Door/Cover material: glass
- Energy consumption in 24h: 1,1 kWh / 24h
- Build in between:
- Temperaturerange: +5°C / Maximale fluctuatie 2,4 °C
- Doorlock:
- Display: Digital
- Self-closing door:
- Temperature Recording: Liebherr SmartMonitoring
- Temperature alarm:
- Door Alarm:
- Alarm limits adjustable:
- Save MIN / MAX temperatures:
- Low temperature thermo:
- Registration alarms:
- Power failure alarm:
- Temperature recording during power failure:
- potential-free contact:
- Interface: WLAN/LAN
- Door hinges: Right, reversible
- Pass-through for sensor:
- Cooling: Dynamic
- automatic defrosting:
- Max. number of drawers: 10
- noise: 49dB
- Refrigerant: R600a
- Length connecting cable: 240cm
- Spark free:
