Description

User-friendly USB ULTRA LOW temperature logger equipped with a PT100 sensor with a memory capacity of 32,000 measurements. The logger automatically creates a PDF report when inserted into the USB port. Multi-use logger with a range of -30°C to +60°C.

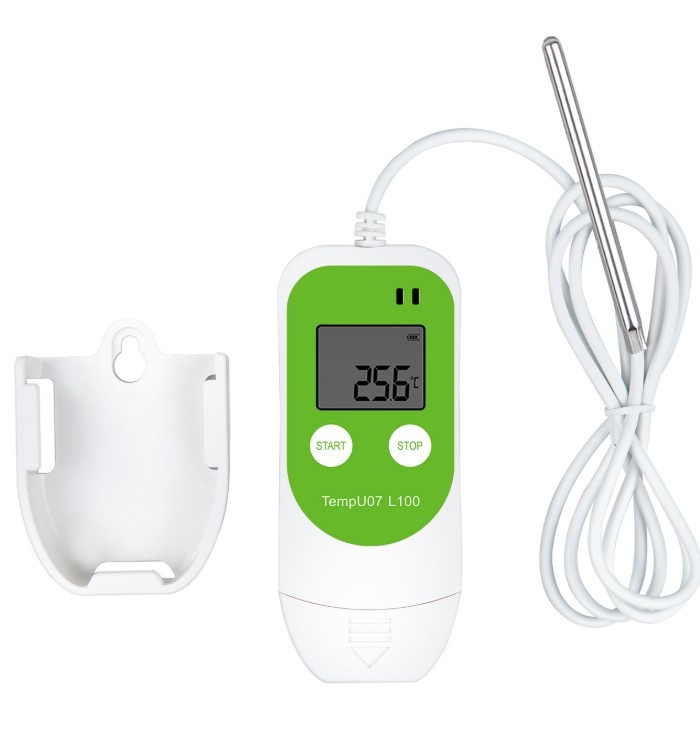

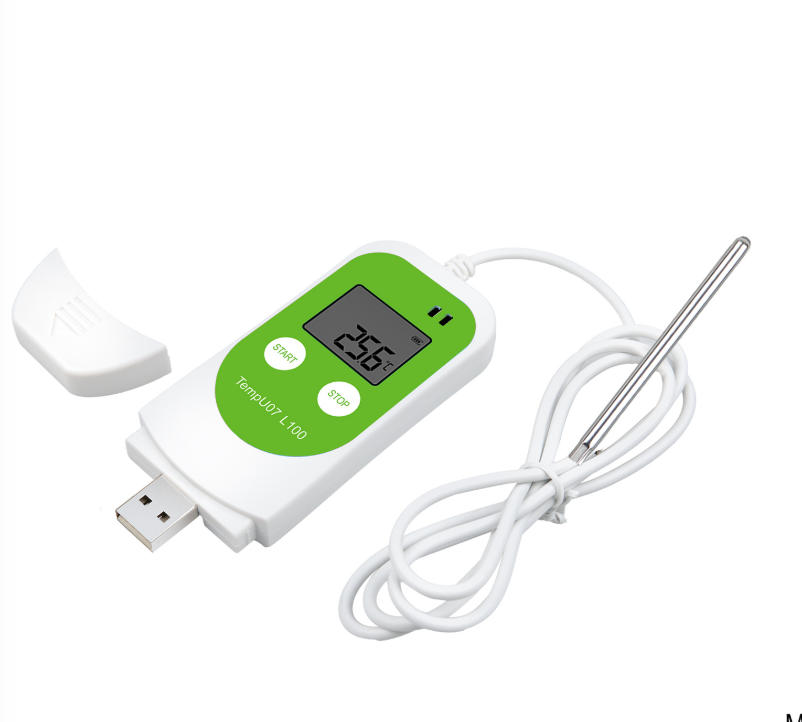

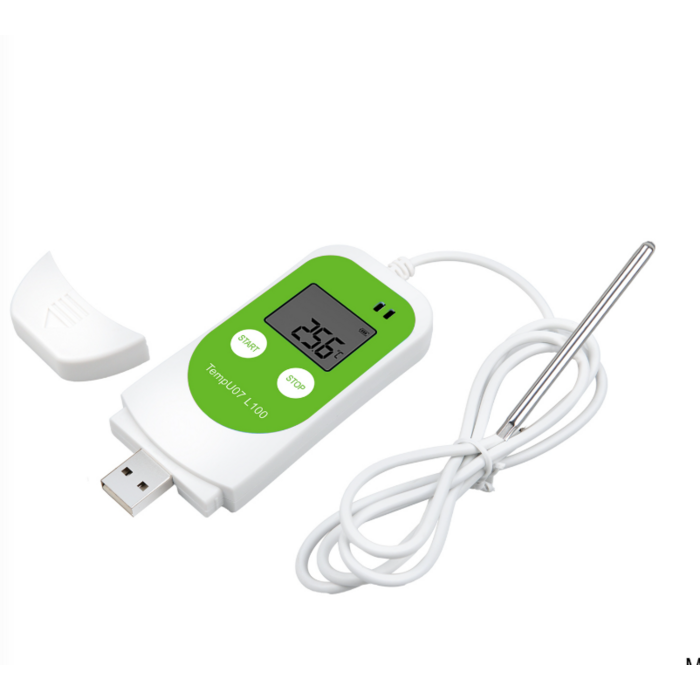

The TempU07 L100 temperature recorder is a simple and portable LCD temperature recorder designed for low temperatures. The device uses an external PT100 sensor and is primarily used to monitor and record temperature data during transport and storage.

Data reading and parameter settings can be performed via the USB interface. Additionally, a report can be automatically and easily generated after connection, without the need to install drivers when the device is connected to the computer.

Downloads:

Features:

This HapoH logger is configured by us and is therefore ready for use.
Default setting: +2°C and +8°C
Temperature range from -100°C to +100°C
Clear LCD screen
Automatic PDF report
Free software available (included) for settings.
Provided with factory measurement report

How to use:

Press and hold the “play” button on the logger for at least 5 seconds until the green OK light illuminates (located next to the play button).
The PT-100 sensor can now be placed in the refrigerator or freezer.
The logger is going to record
If you wish to read the logger, remove the sensor from the refrigerator or freezer, and then immediately press the “stop” button for at least 10 seconds until the red alarm light illuminates.
The logger can now be inserted into the computer's USB port.
The logger can be looked up in File Explorer under the name TZONE.
A PDF file containing all the data is on the logger.
You can save or print this PDF and remove the logger from the computer.
Next, you can start again with the first step above. (The PDF file will be deleted from the USB data logger when you press the play button.)

HapoHUSB Temperature Logger ULTRA LOW
